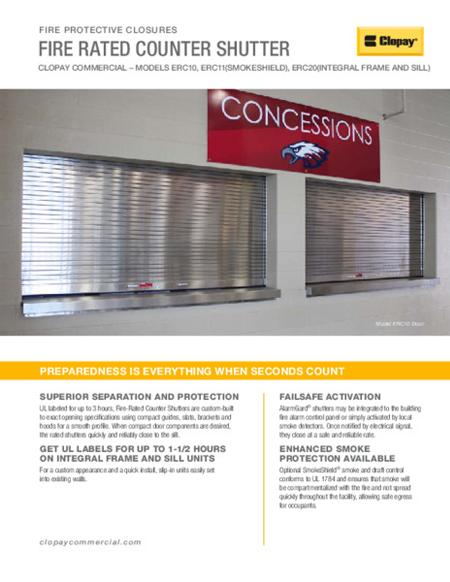

Our Counter Fire Doors offer assurance that your building is safeguarded. These doors establish a robust barrier in both counter-height and full-height openings, effectively containing fires and preventing their spread. Our UL-Labeled Counter Fire Doors offer up to three hours of protection. Complementing our Counter Fire Door is the innovative AlarmGard® operating system, ensuring fail-safe activation and heightened reliability. Through advanced engineering, we've developed our Counter Fire Door with an in-tube hand crank, achieving the smallest footprint of any door in its category on the market. It also comes standard with concealed smoke gasketing within the guides and a bottom bar that retracts flush into the headbox when opened contributing to a seamless, soffit-like appearance. It offers dependable performance with modern design that features color-matched fasteners in your choice of galvanized or stainless steel, and can be customized with RAL powder coat colors and protective finishes for a personalized look. Opt for easier installation and a tailored appearance with an integral frame and sill, backed by a UL Label ensuring safety for up to 1 ½ hours. For commercial use only.

Counter Fire Door

Our Counter Fire Doors offer assurance that your building is safeguarded.

Request A Quote Get Architectural Support

Enter your zip code to find your local dealer

Zip Code

CERC10 & CERC11 (SmokeShield^®)

Fire Specific Options

SmokeShield^® Seal Package – Our smoke seal adds elevated smoke and draft control.

Annunciators – An optional safety device that provides a visual and / or audible advanced warning when the door is about to close.

Battery Back-Up Devices – This device prevents fire doors from closing during a power outage.

Firefly & Firefly BB Release Devise – An optional safety device that can be connected to the buildings alarm system to close a FireGard operated door on alarm activation instead of via the fusible link.

Aesthetics

Omni Powder Coat - Allows you to match your rolling steel doors with select sectional doors to create a unified look. Available in:

Commercial Tan
Commercial Gray
Charcoal
Standard White
Chocolate Brown
Black

AtmoShield™ Powder Coating – It is a textured finish that combats the environments harsh wear and tear. This finish provides a thicker, more scratch resistant coat for added protection.

Hood and Operator Covers – Metal cover designed to shield the coil or operator from outdoor elements, debris, or to comply with OSHA or UL 325 safety standards.

SpectraShield™ Powder Coating – It is a Polyester finish in more than 180 colors offering durability, aesthetics, superior finish life and cost effectiveness.

Performance Upgrades

Seismic Performance Validation – Project specific seismic calculations are available for all rolling doors that are mounted face of wall to steel or masonry. Seismic performance validation is per ASCE 7-05.

Testing Station - Easily and safely test and reset the functionality of the fire door at floor level. Can be mounted flush or recessed for convenience.

Safety & Protection

Sensing Edge - Designed with a flexible black rubber TPE material, our sensing edge has two fins that form to variations in the floor on both the interior and exterior of your door or grille. This ensures a secure seal without requiring you to over set the bottom door limit.

Entrapment Protection Device – Ensures that a motorized door or grille will not close on an object. If an object enters the opening, the entrapment protection device will stop the door or grille from closing and return to the fully open position.

Guide-Mounted Interlocks – An electrical cutout switch to prevent motor operation if the locking device is not first disengaged.

SmartSync Wireless Safety Edge – This is used to upgrade the existing sensing edge to wireless communication between the transmitter and the receiver. This eliminates the coiling cord in the door opening.

Unique Design Solutions

Countertops – UL rated countertops are available for a complete counter fire door system.

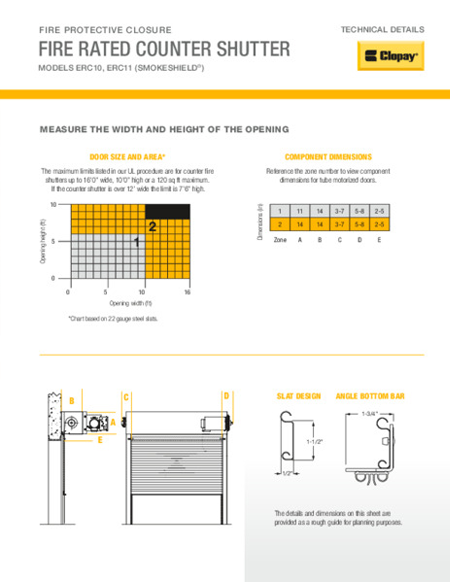

Sizes

If your maximum height is less than or equal to 7’6” your maximum width available is 16’.

If your maximum height is less than or equal to 10’ your maximum width available is 12’.

Mounting Options

Counter Fire Doors can be mounted to rated masonry or drywall construction with wood or metal studs.

Standard Materials and Finishes

Counter Fire Doors are available in:

22 gauge galvanized steel in gray, tan or white.
22 gauge 304 series stainless steel # 4.
