CrossingGard® Emergency Response Grille

CERG-IBC

Aesthetics

Sensing Edge - Designed with a flexible black rubber TPE material, our sensing edge has two fins that form to variations in the floor on both the interior and exterior of your door or grille. This ensures a secure seal without requiring you to over set the bottom door limit.

Hood and Operator Covers – Metal cover designed to shield the coil or operator from outdoor elements, debris, or to comply with OSHA or UL 325 safety standards.

Powder Coating Grilles – We offer a powder coat finish in over 180 colors for perimeter components like the aluminum bottom bar, hoods, wall angles, tube, and fascia. Please note that this finish is not available for the grille curtain itself.

Trim Package – Used to cover unsightly hardware.

Performance Upgrades

LED Light Kit – Provides a high-visible status indication for rolling doors and grilles.

Magic Switch – A touchless activation system designed to operate doors and grilles with the wave of a hand. It is compatible with all operators that have a primary entrapment device and are configured for momentary contact to close. High Cycle Construction – Upgrade to a special higher-cycle construction for up to 100,000 cycles.

Seismic Performance Validation – Project specific seismic calculations are available for all rolling doors that are mounted face of wall to steel or masonry. Seismic performance validation is per ASCE 7-05.

Vibration Isolators – Reduces the amount of vibration caused by operation of doors and grilles.

Safety & Protection

Entrapment Protection Devices – Ensures that a motorized door or grille will not close on an object. If an object enters the opening, the entrapment protection device will stop the door or grille from closing and return to the fully open position.

Sloping or Irregular Openings – Our bottom bar designs can address these conditions.

SmartSync Wireless Safety Edge – This is used to upgrade the existing sensing edge to wireless communication between the transmitter and the receiver. This eliminates the coiling cord in the door opening.

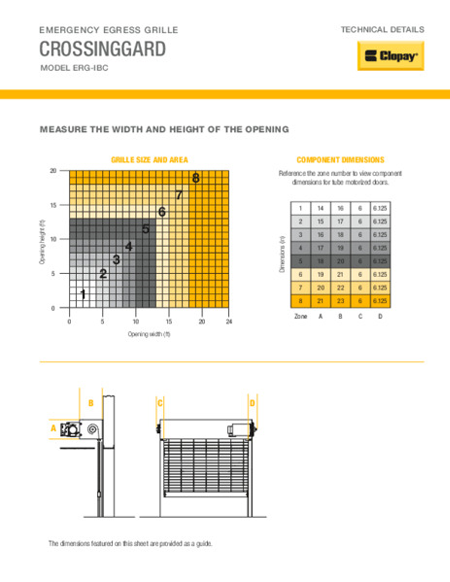

Sizes

Standard Materials and Finishes

The CrossingGard Rolling Grille has an open curtain, which allows air circulation.  The curtain is formed with a series of horizontal rods 5/16" in diameter, with a vertical separation of 2” between.

Rods are available in the following materials:

• Aluminum, with mill, clear or color anodized finish
• 300 series stainless steel
• Solid galvanized steel
