Reserve^® Wood Extira^®

4-Layer-Construction

Extira Overlay + Extira Base Material + Polystyrene Insulated Hemlock Frame + 2" Luan Inside Backer

Eco-Friendly Paint Grade Wood Composite

Extira is a patented composite with outstanding strength and dimensional stability. Made from sustainable materials including unused commercial timber and resins, the density and durability of the substrate makes it easy to incorporate custom details like deep V-groove patterns as well as arches and curves. The result is a design that often isn’t possible with other molded materials or steel.

Design Customization

Durable, paint-grade wood composite with smooth or grooved panel styles and unlimited design options. The smooth surface texture is free of knots and voids often found in wood, allowing for detailed craftsmanship and a flawless, furniture-quality paint finish that will withstand the elements. ColorBlast® custom paint colors are available in 1,500 shades.

Insulation

Polystyrene insulation with a 5.9 R-value for improved energy efficiency

Door Reinforcement

WindCode® door reinforcement product available for high wind load applications.

Environmental Assurance

Extira is a patented and proprietary wood composite manufactured from certified ecofriendly materials.

• Contains wood that has no commercial timber value and is the byproduct of other operations.
• Certified by Scientific Certification Systems under certificate number SCS-MC-01802 to contain no added urea-formaldehyde.
• Acknowledged by the California Air Resources Board’s (CARB) Airborne Toxic Control Measure (ATCM) 93120 to use exempt status ultra-low emitting formaldehyde (ULEF) resins.
• Contributes to industry green building programs such as LEED and the National Green Building Standard.

Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:

• California SB 1013
• Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
• Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
• New Jersey A-5583/S-3919 – Greenhouse Gas Bill

Extira® doors are built to the same exacting standards as all Clopay custom wood doors. We use a Hemlock wood frame for strength and durability, then wrap and band it to keep moisture out. The interior face of the door is finished with a smooth Luan backer and can be painted to match the exterior.

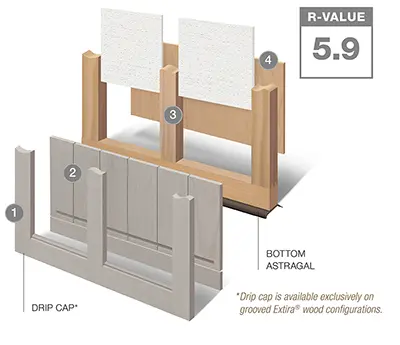

1. Cladding
2. Extira®
3. Polystyrene Insulated Hemlock Frame
4. 1/4" Luan Inside Skin

Additional Features

• Doors are constructed in three panel sections for larger window openings.
• Unique one-piece drip cap design keeps water from flowing behind grooved overlays for improved durability and moisture resistance.
• True divided windows are standard.
• Premium grade hardware, rollers and track assure a smooth, quiet, long-lasting operation.
• Standard replaceable vinyl bottom weather seal in an optional aluminum retainer helps keep out air and water and protects the bottom of the door.
• ColorBlast doors arrive primed or painted and ready to install with a two-year warranty.

Extira wood composite can be specified on Reserve Limited Edition, Reserve Semi-Custom, Reserve Modern, and Classic Wood doors or you can design your own. Standard Clopay window styles, specialty glass, decorative hardware and ColorBlast factory paint colors are available.

Extira has a smooth, consistent appearance free of knots and voids. All panels have a square edge profile.

Extira’s smooth surface texture allows for detailed craftsmanship and a flawless, furniture-quality paint finish that will withstand the elements. To start designing your Extira garage door, choose a Design + Top Section or Windows + Color + Hardware.

• Door Designs

• Top Sections

• Specialty Glass Options

• Colors

• Hardware

Overlays

Smooth Extira®*

Base Face Material

Grooved Extira®

Smooth Extira®

*Only available in smooth.

Window Designs

REC13

REC14

SQ23

SQ24

ARCH13

ARCH14

ARCH3

ARCH4

Modern Short

Modern Long

Modern Aluminum Inlay

Seeded

Frosted

Obscure

Clear, tempered glass is standard unless otherwise specified.

Extira’s smooth surface texture allows for detailed craftsmanship and a flawless, furniture-quality paint finish that will withstand the elements. Refer to the ColorBlast® brochure to choose from hundreds of Sherwin-Williams® paint options, including dark colors.

Handles

Spade Lift Handles
(included)

Spear Lift Handles

Colonial Lift Handles

Decorative Lift Handles

Ring Door Knocker

Escutcheon Plates

Twisted "L" Handles

Plates

Spade Step Plate

Spear Step Plate

Colonial Step Plate

Hinges

Spade Strap Hinge

Spear Strap Hinge

Colonial Strap Hinge
