The 5015 Rolling Security Grille curtain is engineered for exceptional durability. It features solid rods that are closely spaced unlike standard security grille designs. Each link is 50% heavier and includes tube spacers on every rod, enhancing security and longevity compared to traditional overhead grilles. This robust construction is particularly suited for applications where no additional security layer is required, built to endure up to 50,000 cycles. For high-demand facilities, a specialized 100,000-cycle variant is also available. Similar to our other rolling grille offerings, the 5015 curtain retracts into an overhead coil fully supported by the guides. This eliminates the need for extra support beams at the security grille hood. Balancing security, visibility, and airflow is crucial in many scenarios. The 5015 model offers heightened security while maintaining excellent visibility and airflow. This makes it an ideal solution for storefronts and applications seeking enhanced security without compromising on these essential factors. For commercial use only.
Heavy Duty 5015 Rolling Grille
The 5015 Rolling Security Grille curtain is engineered for exceptional durability
Enter your zip code to find your local dealer
The 5015 Rolling Security Grille curtain is engineered for exceptional durability. It features solid rods that are closely spaced unlike standard security grille designs. Each link is 50% heavier and includes tube spacers on every rod, enhancing security and longevity compared to traditional overhead grilles. This robust construction is particularly suited for applications where no additional security layer is required, built to endure up to 50,000 cycles. For high-demand facilities, a specialized 100,000-cycle variant is also available. Similar to our other rolling grille offerings, the 5015 curtain retracts into an overhead coil fully supported by the guides. This eliminates the need for extra support beams at the security grille hood. Balancing security, visibility, and airflow is crucial in many scenarios. The 5015 model offers heightened security while maintaining excellent visibility and airflow. This makes it an ideal solution for storefronts and applications seeking enhanced security without compromising on these essential factors. For commercial use only.
Aesthetics
Chain Diverter for MGH Operator – Holds the auxiliary chain out of the opening, enabling unhindered movement through the door and eliminating the need for a chain bag.
Fixed Panels – Any grille curtain is adaptable for installation within a fixed frame assembly.
Hood and Operator Covers – Metal cover designed to shield the coil or operator from outdoor elements, debris, or to comply with OSHA or UL 325 safety standards.
Powder Coating Grilles – We offer a powder coat finish in over 180 colors for perimeter components like the aluminum bottom bar, hoods, wall angles, tube, and fascia. Please note that this finish is not available for the grille curtain itself.
Trim Package – Used to cover unsightly hardware.
Performance Upgrades
LED Light Kit – Provides a high-visible status indication for rolling doors and grilles.
Magic Switch – A touchless activation system designed to operate doors and grilles with the wave of a hand. It is compatible with all operators that have a primary entrapment device and are configured for momentary contact to close.
High Cycle Construction – Upgrade to a special higher-cycle construction for up to 100,000 cycles.
Seismic Performance Validation – Project specific seismic calculations are available for all rolling doors that are mounted face of wall to steel or masonry. Seismic performance validation is per ASCE 7-05.
Vibration Isolators – Reduces the amount of vibration caused by operation of doors and grilles.
SmartSync Wireless Remote Control – The anti-shock design of this remote is designed for industrial handling. Compatible with most motor – operated doors, grilles or counter doors.
Safety & Protection
SafetyGard UL325 Approved Light Curtain – Prevents damage to an object in the door’s opening and minimizing damage to the closure itself.
Entrapment Protection Device – Ensures that a motorized door or grille will not close on an object. If an object enters the opening, the entrapment protection device will stop the door or grille from closing and return to the fully open position.
Guide-Mounted Interlocks – An electrical cutout switch to prevent motor operation if the locking device is not first disengaged.
Locking-Security Grilles – A wide variety of locking options are available to meet your security needs.
Manual Release System – If egress is required on a motorized grille, a wall mounted pull handle disengages the motor to allow the grille to partially open.
Sensing Edge - Designed with a flexible black rubber TPE material, our sensing edge has two fins that form to variations in the floor on both the interior and exterior of your door or grille. This ensures a secure seal without requiring you to over set the bottom door limit.
SmartSync Wireless Safety Edge – This is used to upgrade the existing sensing edge to wireless communication between the transmitter and the receiver. This eliminates the coiling cord in the door opening.
Usage - Constructed for daily use and can withstand operation of up to 20 cycles per day – that’s 50K cycles for the lifetime of the grille. Dependent on curtain configuration and spring selection.
Materials and Finishes – Available in aluminum clear anodized and stainless steel – 300 series in #4 finish.

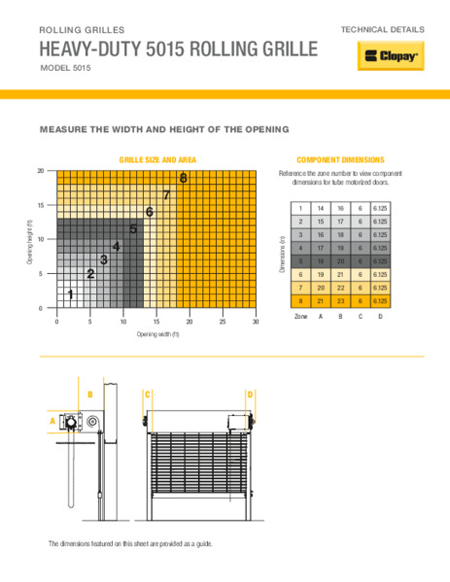

Heavy Duty 5015 Rolling Grille Technical Details
Explore Brochure

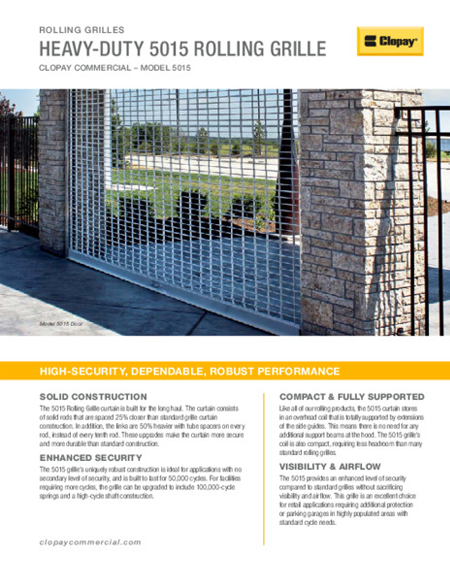

Heavy Duty 5015 Rolling Grille Feature Sheet
Explore Brochure
Commercial Lookbook
Explore BrochureOptional High Cycle Springs - Heavy duty springs manufactured to withstand cycles of 100,000.
