Service Door

CESD10 & CSRD10W

Aesthetics

Omni Powder Coat – Allows you to match your rolling steel doors with select sectional doors to create a unified look. Available in:

• Commercial Tan
• Commercial Gray
• Charcoal
• Standard White
• Chocolate Brown
• Black

Chain Diverter for MGH Operator – Holds the auxiliary chain out of the opening, enabling unhindered movement through the door and eliminating the need for a chain bag.

Custom Slats – Slats with several small window-sized punched slots create an open curtain design, offering high security while enabling ventilation and visibility.

AtmoShield™ Powder Coating – It is a textured finish that combats the environments harsh wear and tear. This finish provides a thicker, more scratch resistant coat for added protection.

Hood and Operator Covers – Metal cover designed to shield the coil or operator from outdoor elements, debris, or to comply with OSHA or UL 325 safety standards.

SpectraShield™ Powder Coating – It is a Polyester finish in more than 180 colors offering durability, aesthetics, superior finish life and cost effectiveness.

Vinyl Graphics –Enhance your curtains and hoods with lasting, full-color imagery. A must for school logos and smart way to turn your door into a lucrative sponsorship opportunity in stadiums, amusement parks and retail spaces.

Vision Windows–One- or two-way windows can be added to the curtain to boost the look and visibility of your door.

ScreenGard Perforated Slats–Whether you choose Galvanized Steel or Aluminum, with ScreenGard perforated slats, you reap the benefits of a rolling door, and gain the visibility and ventilation of a grille.

Trim Package – Used to cover unsightly hardware.

Performance Upgrades

LED Light Kit – Provides a high-visible status indication for rolling doors and grilles.

Magic Switch – A touchless activation system designed to operate doors and grilles with the wave of a hand. It is compatible with all operators that have a primary entrapment device and are configured for momentary contact to close.

High Cycle Springs – Durable, robust springs engineered to endure 100,000 cycles.

Seismic Performance Validation – Project specific seismic calculations are available for all rolling doors that are mounted face of wall to steel or masonry. Seismic performance validation is per ASCE 7-05.

Vibration Isolators – Reduces the amount of vibration caused by operation of doors and grilles.

SmartSync Wireless Remote Control – The anti-shock design of this remote is designed for industrial handling. Compatible with most motor – operated doors, grilles or counter doors.

Safety & Protection

SmartSync Wireless Safety Edge – This is used to upgrade the existing sensing edge to wireless communication between the transmitter and the receiver. This eliminates the coiling cord in the door opening.

Sensing Edge - Designed with a flexible black rubber TPE material, our sensing edge has two fins that form to variations in the floor on both the interior and exterior of your door or grille. This ensures a secure seal without requiring you to over set the bottom door limit.

SafetyGard UL325 Approved Light Curtain – Prevents damage to an object in the door’s opening and minimizing damage to the closure itself.

Entrapment Protection Device – Ensures that a motorized door or grille will not close on an object. If an object enters the opening, the entrapment protection device will stop the door or grille from closing and return to the fully open position.

Guide-Mounted Interlocks – An electrical cutout switch to prevent motor operation if the locking device is not first disengaged.

HDBB (Heavy Duty Bottom Bar) – Since it’s 350% more durable than the average bottom bar, the HDBB averts forklift damage to your service or insulated door. After the first impact, the door basically pays for itself and noticeably decreases future maintenance fees.

Rapid Response –Equipped with three or six feet of additional curtain and a sturdy bottom bar, RapidResponse makes slat repairs a snap with demountable lower guide sections.

Rolling Door Protector (RDP) –Say goodbye to expensive fork truck damage to rolling doors and hello to the RDP.  The door withstands impacts due its creation of a physical barrier at the top.

WeatherGard™ –Add weather seals to the guides and bottom bar with an internal hood baffle at coil housing. Lintel mounted nylon brush is also an option.

Static Windload –Can be designed to combat the spectrum of specific wind load requirements, encompassing missle impact ratings.

Operational Windload –Can be crafted to stand up to an operational windload of 20 PSF.

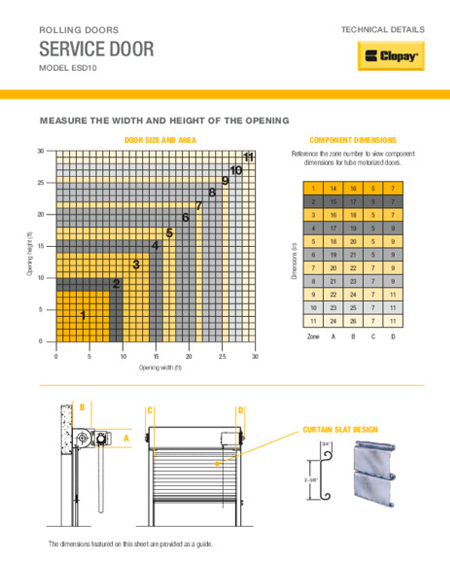

Sizes

Standard construction up to 30' wide, 30' high

Usage

The doors are constructed for daily use and can withstand operation of up to 20 cycles per day – that’s 50,000 cycles for the lifetime of the door.

Standard Materials and Finishes

Galvanized Steel

20 gauge 300 series stainless steel

• #4 finish
• Structural stainless

#16 B&S gauge aluminum

• Mill, clear or color anodized finish
