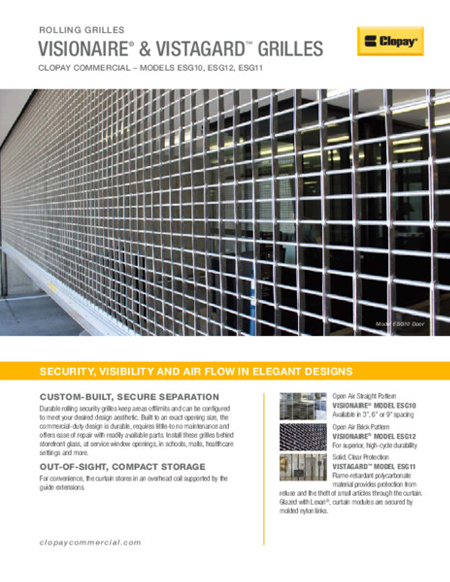

Looks, longevity and low headroom make Visionaire a leader in retail security. You barely know it’s there, as its low profile design and sleek finish options set the stage for a smart look that lets your storefront’s design be the star of the show. Two different curtain options, straight or brick pattern, allow for visibility and ventilation. The curtain features mill finish aluminum rods and spacers with links crafted from 304 stainless steel. Guides come in standard in mill finish aluminum. Visonaire’s patented link design not only lessens noise and vibration, it also lengthens the maturity of the grille, yielding a lifespan of 50,000 cycles. The secret to this safeguard lies in the reduced coil size, as it requires nearly 30% less headroom than run-of-the mill commercial grilles. From high end retail stores and hospitality spaces, to parking garages and health care facilities, Visionaire’s versatility is the go-to for entryway security. For commercial use only.

Visionaire® & VistaGard™ Grilles

Looks, longevity and low headroom make Visionaire® and VistaGard™ Grilles a leader in retail security.

Request A Quote Get Architectural Support

Enter your zip code to find your local dealer

Zip Code

CESG10, CESG12, & CESG11

Aesthetics

Chain Diverter for MGH Operator – Holds the auxiliary chain out of the opening, enabling unhindered movement through the door and eliminating the need for a chain bag.

Fixed Panels – Any grille curtain is adaptable for installation within a fixed frame assembly.

Hood and Operator Covers – Metal cover designed to shield the coil or operator from outdoor elements, debris, or to comply with OSHA or UL 325 safety standards.

Powder Coating Grilles – We offer a powder coat finish in over 180 colors for perimeter components like the aluminum bottom bar, hoods, wall angles, tube, and fascia. Please note that this finish is not available for the grille curtain itself.

Trim Package – Used to cover unsightly hardware.

Performance Upgrades

Vibration Isolators – Reduces the amount of vibration caused by operation of doors and grilles.

LED Light Kit – Provides a high-visible status indication for rolling doors and grilles.

Magic Switch – A touchless activation system designed to operate doors and grilles with the wave of a hand. It is compatible with all operators that have a primary entrapment device and are configured for momentary contact to close.

High Cycle Construction – Upgrade to a special higher-cycle construction for up to 100,000 cycles.

High Cycle Springs – Durable, robust springs engineered to endure 100,000 cycles.

Seismic Performance Validation – Project specific seismic calculations are available for all rolling doors that are mounted face of wall to steel or masonry. Seismic performance validation is per ASCE 7-05.

SmartSync Wireless Remote Control – The anti-shock design of this remote is designed for industrial handling. Compatible with most motor – operated doors, grilles or counter doors.

Safety & Protection

SmartSync Wireless Safety Edge – This is used to upgrade the existing sensing edge to wireless communication between the transmitter and the receiver. This eliminates the coiling cord in the door opening.

Sensing Edge - Designed with a flexible black rubber TPE material, our sensing edge has two fins that form to variations in the floor on both the interior and exterior of your door or grille. This ensures a secure seal without requiring you to over set the bottom door limit.

SafetyGard UL325 Approved Light Curtain – Prevents damage to an object in the door’s opening and minimizing damage to the closure itself.

Entrapment Protection Device – Ensures that a motorized door or grille will not close on an object. If an object enters the opening, the entrapment protection device will stop the door or grille from closing and return to the fully open position.

Guide-Mounted Interlocks – An electrical cutout switch to prevent motor operation if the locking device is not first disengaged.

Locking-Security Grilles – A wide variety of locking options are available to meet your security needs.

Manual Release System – If egress is required on a motorized grille, a wall mounted pull handle disengages the motor to allow the grille to partially open.
